Intelligent Flat Glass Tempering Furnaces

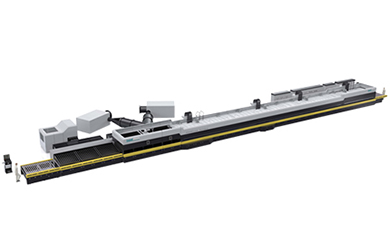

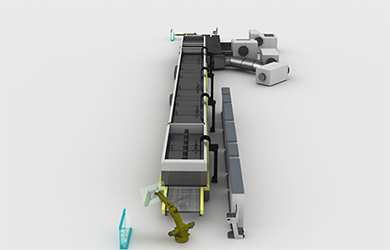

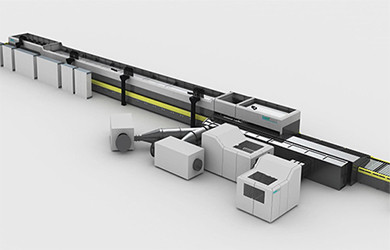

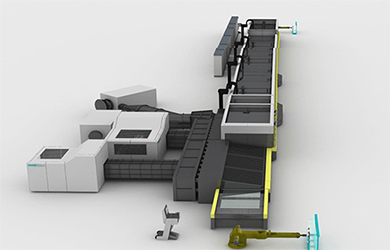

LD-AL AirStream Continuous Flat Glass Tempering Furnace
Architecture&Furniture, Household Appliances and Solar Power Industries, etc.
Combination of radiation and assistant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
- In 2011 LandGlass introduced the Continuous Flat Glass Tempering Furnace to satisfy the increasing demands for tempered glass in the household appliances and solar markets. Because of its design, the line guarantees a stable operation and outstanding product quality.Thanks to this leap in quality, our Continuous Flat Glass Tempering Furnace had been installed in the leading international glass processing companies in 2012.
AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.
LD-AL AirStreamTM Continuous Flat Glass Tempering Furnace adopts AirStreamTM heating technology. Glass tempered by this tempering furnace is suitable for flat glass for architectures, furniture, household appliances and solar industry markets. The glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
Productivity is calculated on 4mm clear glass with 100% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AL AirStream Continuous Flat Glass Tempering Furnace Types Max.Dimension Min.Dimension Glass thickness Productivity (pieces/h) Installed Capacity(KVA) A1225L16U 1200X2500 100X350 3-6/4-8 290 1250 A1230L19U 1200X3000 100X350 3-6/4-8 300 1250 A1525L24U 1500X2500 100X350 3-6/4-8 350 1800 A1530L30U 1500X3000 100X350 3-6/4-8 360 2000 A1625L36U 1600X2500 200X350 3-6/4-8 380 2500 A1630L42U 1600X3000 200X350 3-6/4-8 390 2500 A1730L48U 1700X3000 200X350 3-6/4-8 410 3000
Productivity is calculated on 4mm clear glass with 100% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AL AirStream Continuous Flat Glass Tempering Furnace Types Max.dimensionMin.dimensionGlassthicknessProductivity(m2//h)Installedcapacity(KVA)A1225L 1200X2500 100X350 3-6/4-8 290 1600 A1230L 1200X3000 100X350 3-6/4-8 300 1600 A1525L 1500X2500 100X350 3-6/4-8 350 2000 A1530L 1500X3000 100X350 3-6/4-8 360 2000 A1625L 1600X2500 200X350 3-6/4-8 380 2500 A1630L 1600X3000 200X350 3-6/4-8 390 2500 A1730L 1700X3000 200X350 3-6/4-8 410 3000 - Company
Xinyi Glass Holdings Limited LocationHongkong, China Company ProfileXinyi Glass Holdings Limited, a major supplier in the global supply chain, was founded in 1988 and listed on the main board of the Hong Kong Stock Exchange in February 2005 The group has established six major production bases located in Dongguan, Shenzhen, Jiangmen, Wuhu, Tianjin and Yingkou, with a total area of over 5 million ㎡ and 15,000 employees in 33 branches all around the world. It is specialized in the production of float glass, auto glass, architectural glass and photovoltaic glass and its products have been sold to 100 countries and regions around the globe. Furnace ModelLD-AL AirStream Continuous Flat Glass Tempering Furnace Main ProductsLow-iron Patterned Glass（raw glass sheet, tempered glass sheet）、AR photovoltaic Glass、TCO Glass、Low -iron Float Glass and so on.
