Intelligent Automotive Glass Bending and Tempering Furnace

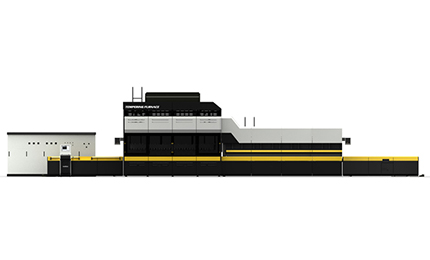

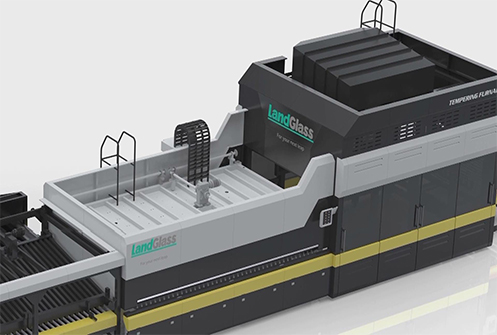

LD-EV Double Curvature Glass Bending and Tempering Furnace (Windshield Glass)
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
Adopting the latest vacuum thermoforming technology, ideal for mass production of windshield.
Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.
Servo driving – fully adopting servo driving system in bending section for high location accuracy;
Mold heating – compensating heat loss in thin glass bending;
Vacuum suction – creating close contact between mold and glass for precision shaping with vacuum suction;
Custom chiller – customized chiller in conformity with the shape of the glass to ensure the uniformity of tempering stress;
Air cushioned unloading – avoiding damage to glass, improving glass surface quality;
Dual-mold trolley – less processing time for higher output;

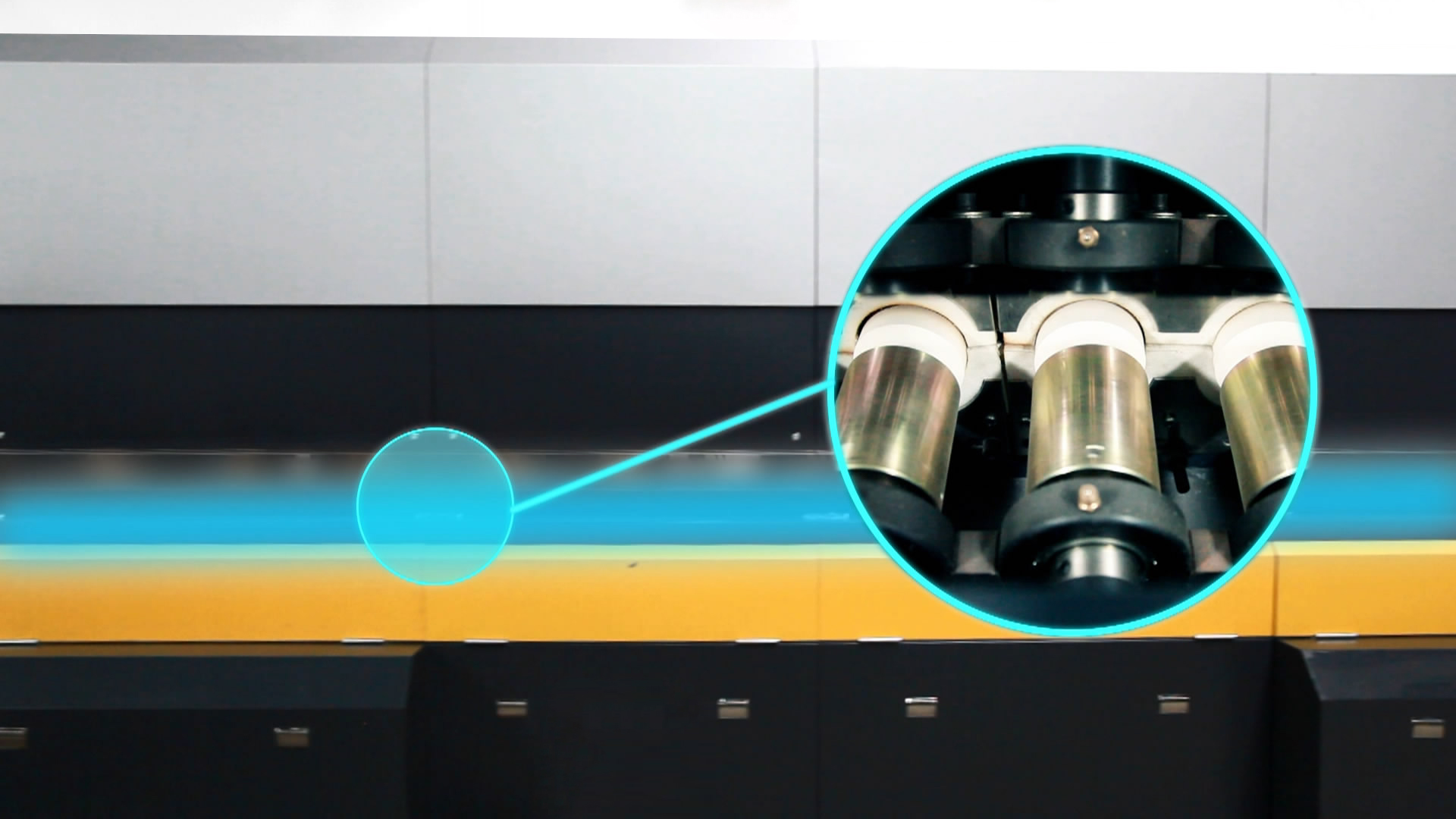

Lowered roller table – allowing steady running of bending roller.LD-EV Double Curvature Glass Bending and Tempering Furnace (Windshield Glass)
Types Max.Size(mm) Min.Size(mm) Thickness(mm) Max.Height of Curvature Capacity Installed Capacity（KVA） E1610/3V ARC1600XARC1000 ARC400XARC500 2-2.5hot bending/2-3semi-tempered/3.2-6fully tempered 120 68-72 1500 E1610L14V ARC1600XARC1000
ARC400XARC500
2-2.5hot bending/2-3semi-tempered/3.2-6fully tempered
120 140-150 2200 Note: Actual productivity may vary depending on the glass types and process requirements.
Company Name BSG Auto Glass Co., Ltd. Company Location Dafeng City, Jiangsu Province Introduction Specialized in automobile glass manufacturing, BSG Auto Glass Co., Ltd is one of the major industrial projects in Yancheng City. The company is equipped with several state-of-the-art production lines for upscale automobile glass, primarily developing, making, and selling high performance, sound and thermal insulating glasses for luxury vehicles. Equipment Type LD-E1610 Main products Various types of laminated windshield glasses, side window glasses for luxury cars, buses, trucks, and recreational vehicles.
