Intelligent Bi-directional Glass Tempering Furnaces

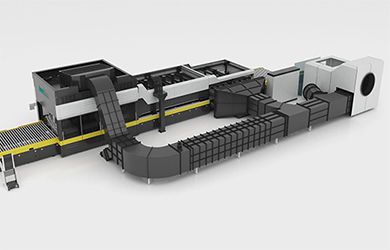

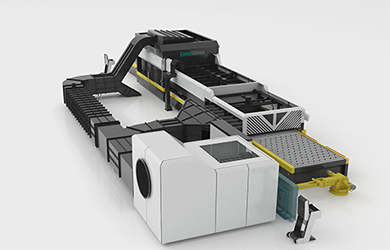

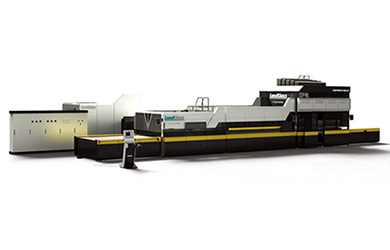

LD-AB SuperAir Flat&bent Bi-direction Tempered Glass Machine
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of radiation and assistant convection heating.
On-line and Off-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
- With the development of the glass industry, the B type bending and tempering furnace, which was originally made for tempering small size glasses, was continuously redesigned to fit bigger glass sizes for the architectural glass market. After that, LandGlass introduced the AB Flat & Bent Bi-Direction Glass Tempering Furnace. This type of furnace has both a bent and a flat tempering section at the two ends of the heating furnace. It can temper flat or bent glass by loading the glass from different direction.
SuperAirTM Radiation Heating plays an important role during the process. More compressed air is blown into heating furnace by an intelligent pipe convection system to optimize the heating process of the top surface of glass. Both on-line and off-line Low-E glass can be evenly heated.
LD-AB SuperAirTM Flat & Bent Bi-Directional Glass Tempering Furnace adopts SuperAirTM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. The glass that can be tempered includes: on-line and off-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc. - 1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.
2. Hard-shaft bending roller technology bends glass lengthwise.
3. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.
4. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
Productivity of bent glass is calculated on 5mm clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AB SuperAir Flat&bent Bi-direction Tempered Glass Machine Types Flat glass
Max.
dimensionBent glass
Max.
dimensionFlat glass Min.
dimensionBent glass Min.
dimensionGlass
thicknessProductivity
(loads/h)Installedcapacity(KVA)A2030B08/2 2000x3000 2000xARC800 150x350 200xARC350 4-19/450 25-29 800 A2030B10/2 2000x3000 2000xARC1000 150x350 200xARC350 4-19/500 25-29 800 A2436B15/2 2440x3600 2440xARC1500 150x350 300xARC400 4-19/750 25-29 800 A2442B18/2 2440x4200 2440xARC1800 150x350 300xARC400 4-19/850 25-29 800 A2460B25/2 2440x6000 2440xARC2500 150x350 300xARC500 4-19/1000 25-29 1000 A2860B25/2 2800x6000 2440xARC2500 200x400 500xARC600 4-19/1000 25-29 1250 A3080B30/2 3000x6000 3000xARC3000 300x500 500xARC600 5-19/1500 25-29 2000 - Company
E-I-T(Europe Industrial Traders) LocationLebanon, Southwest Asia Company ProfileEIT-Group consists of a world-wide Industrial, Financial and Commercial companies specialized in different major sectors located in Germany, Hungary, Egypt, Hong Kong, China and Lebanon.It is one of Middle East's leading glazing contracting and processing firms. Furnace TypeLD-AB Flat&bent Bi-direction Glass Tempering Furnace Main ProductsGlass, aluminium, steel, composite panels.
