Intelligent Bi-directional Glass Tempering Furnaces

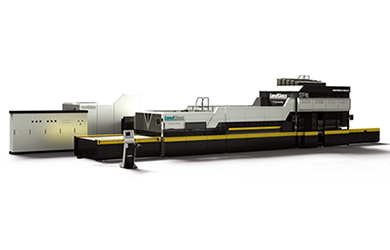

LD-AC JetConvection Plus Flat&bent Bi-direction Glass Tempering Line
Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
- After the successful development of the B type bending and tempering line, which was originally made for tempering small size glasses, the LandGlass R&D team developed a special machine for the jumbo size bent and temper glasses that the architectural market was demanding. LandGlass introduced the AC Flat & Bent Bi-Direction Glass Tempering Line. This type of line has both a bent and a flat tempering section at the two ends of the heating furnace. It can temper flat or bent glass by loading the glass from different direction. Equipped with JetConvection heating technology, it can bend and temper off-line low-e and other highly demanding glasses.
JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass JetConvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

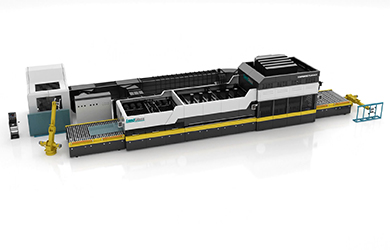

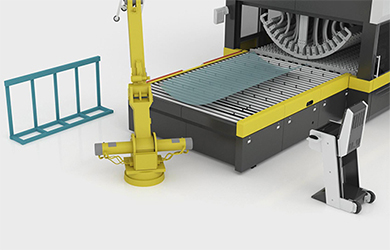

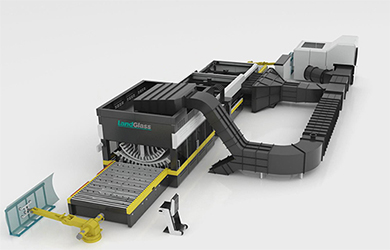

LD-AC JetConvection PlusTM Flat & Bent Bi-Directional Glass Tempering Line adopts JetConvection PlusTM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc. - 1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.
2. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
3. Thanks to the adoption of servo-controls in the bending section, the bent tempered glass has an excellent repeatability. Furthermore, there is a mechanical bolt for slightly adjusting to make perfect bent glass with high accuracy.
4. The chillers with computer optimized nozzles arrangements consist of several blocks made of aluminum profiles, which maximizes air flow and minimizes air marks.
5. Equipped with JetConvection PlusTM heating system, it can temper on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
Productivity of bent glass is calculated on 5mm clear glass and 5 mm Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.LD-AC JetConvection Plus Flat&bent Bi-direction Glass Tempering LineTypesMax.dimensionMin.dimensionGlassthickess/
Min.Radius
Productivity(loads/h)Installedcapacity
(KVA)
Flat glassBent glassFlat glassBent glassClear
glassLow-EA1836C36J+1800x36003600xARC1800150x350400xARC600Flat4-19
Bent5-19
90014-1612-14630A2030C30J+2000x30003000xARC2000150x350400xARC600Flat4-19
Bent5-19
90014-1612-14630A2436C36J+2440x36003600xARC2440150x350400xARC600Flat4-19
Bent5-19
100014-1612-141000A2442C42J+2440x42004200xARC2440150x350400xARC600Flat4-19
Bent5-19
100014-1612-141000A2450C36J+2440x50003600xARC2440150x350400xARC600Flat4-19
Bent5-19
100014-1612-141000A2450C50J+2440x50005000xARC2440150x350400xARC600Flat4-19
Bent5-19
100014-1612-141250A2460C50J+2440x60005000xARC2440150x350400xARC600Flat4-19
Bent5-19
100014-1612-141350A2850C42J+2800x50004200xARC2800200x400400xARC600Flat4-19
Bent5-19
130014-1612-141250A2860C50J+2800x60005000xARC2800200x400400xARC600Flat4-19
Bent5-19
130014-1612-141350- Company
Lasry Glass LocationFrance, Europe Company ProfileWith an effective presence in over 30 countries and acting under the “LASRY GLASS” banner, the subsidiaries of the group LASRY HOLDING S.A.S are specialized in the international flat glass distributions and processings for indoor and outdoor Architecture, Industry and Art. Furnace TypeLD-AC JetConvection Flat&bent Bi-direction Glass Tempering Line Main ProductsClear, extra-clear and tinted glass, common and decorative laminated glass, coated glass, coloured glass, solar glass, etc.
