Intelligent Bi-directional Glass Tempering Furnaces

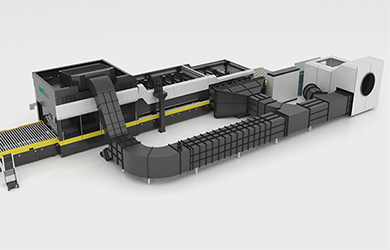

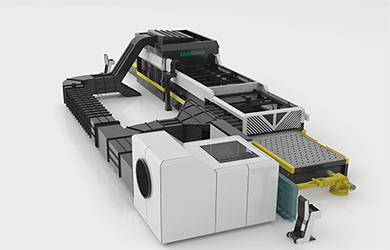

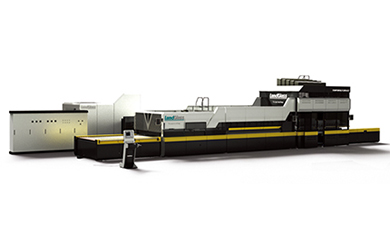

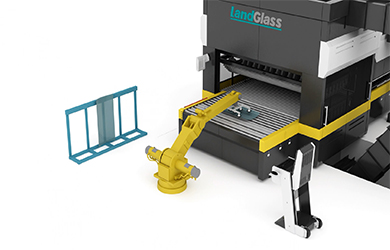

LD-AB JetConvection Plus Flat&bent Bi-direction Tempered Glass Machine

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • With the development of the glass industry, the B type bending and tempering furnace, which was originally made for tempering small size glasses, was continuously redesigned to fit bigger glass sizes for the architectural glass market. After that, LandGlass introduced the AB Flat & Bent Bi-Direction Glass Tempering Furnace. This type of furnace has both a bent and a flat tempering section at the two ends of the heating furnace. It can temper flat or bent glass by loading the glass from different direction. Equipped with JetConvection heating technology, it can bend and temper off-line and online low-e and other highly demanding glasses..

    JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass JetConvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-AB JetConvection PlusTM Flat & Bent Bi-Directional Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.

    2. Hard-shaft bending roller technology bends glass lengthwise.

    3. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.

    4. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.

    5. Equipped with JetConvection Plus heating system, it can temper on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • LD-AB JetConvection Plus Flat&bent Bi-direction Glass Tempering Furnace
    Types
    Max.dimension
    Min.dimension
    Glass
    thickess/Min.Radius
    Productivity(loads/h)

    Installed

    capacity

    (KVA)

    Flat glass
    Bent glass
    Flat glass
    Bent glass
    Clear
    glass
    Low-E
    A2030B08/2J+
    2000x3000
    2000xARC800
    150x350
    200xARC350
    4-19/450
    27-31
    25-29
    800
    A2030B10/2J+
    2000x3000
    2000xARC1000
    150x350
    200xARC350
    4-19/500
    27-31
    25-29
    800
    A2436B15/2J+
    2440x3600
    2440xARC1500
    150x350
    300xARC400
    4-19/750
    27-31
    25-29
    800
    A2442B18/2J+
    2440x4200
    2440xARC1800
    150x350
    300xARC400
    4-19/850
    27-31
    25-29
    1000
    A2450B25J+
    2440x5000
    2440xARC2500
    150x350
    300xARC500
    4-19/1000
    14-16
    12-14
    1000
    A2460B25J+
    2440x6000
    2440xARC2500
    150x350
    300xARC500
    4-19/1000
    14-16
    12-14
    1250
    A2850B25J+
    2800x5000
    2800xARC2500
    200x400
    500xARC600
    4-19/1000
    14-16
    12-14
    1250
    A3080B30J+
    3000x8000
    3000xARC3000
    300x500
    500xARC600
    5-19/1500
    14-16
    12-14
    2000
    Productivity of bent glass is calculated on 5mm clear glass and 5mm Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.
  • Company

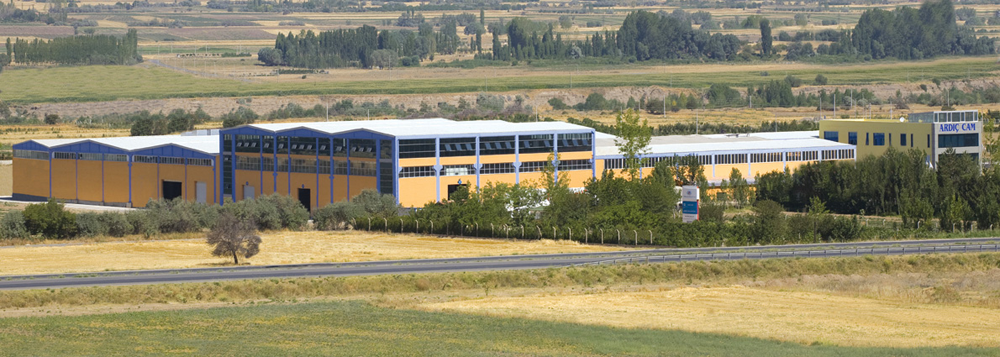

    Ardıç Glass Industry Trade Company
    Location
    Ankara, Turkey
    Company Profile
    Based in Kazan, Ankara, Türkiye, Ardıç Glass is included to the sector in 1985 through retail sales and in 1995, due to the increasing in sale capacity and development of the sector, whole sale and insulating glass unit manufacturing have began.For 20 years, Ardıç Glass has continued to deal in wholesale of glass and manufacturing of insulating glass unit without making any concession in quality.
    Furnace Type
    LD-AB JetConvection Flat&bent Bi-directional Glass Tempering Furnace
    Main Products
    Vision and spandrel glass, special glass, security glass, decorative glass, glass furniture and accessory, etc.
