Intelligent Bent Glass Tempering Furnaces

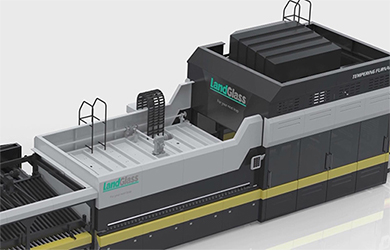

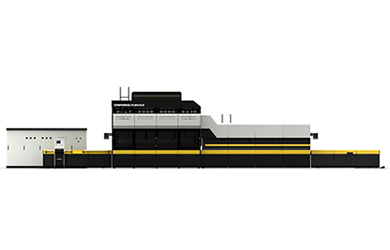

LD-B JetConvetion Plus Bent Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E=0.02) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • After the excellent results obtained from the first flat glass tempering furnace, LandGlass started committing R&D resources to develop the B bent glass tempering equipment. The first name it received was the hard-roller bending tempering furnace, because of the steel driving rollers in the bending section. The small pieces of bent tempered glass that the furnace produces satisfy the demand of the automotive and furniture markets.

    Our engineering team worked for years to develop the bending mechanism for this furnace, from a simple manual bending mechanism to a precise semi-automatic bending system. This is one of the most popular LandGlass’ products. Equipped with JetConvection heating technology, it can bend and temper off-line and online Low-E and other highly demanding glasses.

    JetConvection PlusTMheating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass JetConvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-B JetConvection PlusTMBent Glass Tempering Furnace adopts JetConvection PlusTMheating technology. It is suitable for tempering single curvature glass in small quantities. Glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

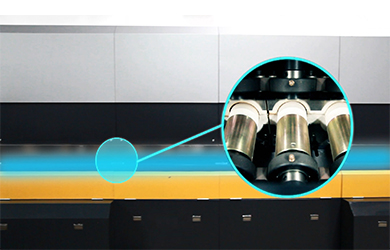

  • 1. Hard-shaft bending roller technology bends glass lengthwise.

    2. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.

    3. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.

    4. It can bend and temper small volumes of highly accurate single curvature glass for the automotive and household appliances market.

    5. Equipped with JetConvection heating system, it can temper on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • LD-B JetConvetion Bent Glass Tempering Furnace
    Types
    Max.
    dimension
    Min.
    dimension
    Glass
    thickness
    Min.
    radius
    Productivity(pieces/h)
    Installed
    capacity(KVA)
    B09075/4
    900xARC750
    150xARC300
    3.2-5
    1000
    70-90(3.5mm)
    630
    B1208/3
    1200xARC800
    150xARC300
    3.2-5
    1000
    40-43(5mm)
    1000
    B1510/2
    1500xARC1000
    150xARC300
    3.2-5
    1000
    25-29(5mm)
    1000
    B2015/2
    2000xARC1500
    200xARC350
    4-6
    1000
    25-29(5mm)
    1000
    Productivity is calculated on clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited of space.
  • Company
    Vidrieria Oriental
    Location
    Bolivia, South America
    Company Profile
    The Oriental Glassmaking Company is located in the city of Santa Cruz, Bolivia. The company is specialized in the production of tempered glass for the use of architecture, furniture and decorations. With advanced equipments and skilled workers, the company can produce high quality glass products to meet the demand of customers.
    Furnace Type
    LD-B Series Single Curvature Glass Tempering Furnace
    Main Products
    tempered glass for autos, architecture, furniture, stained glass, etc.

    Glass Tempering Furnace-Vidrieria Oriental-LandGlass    Glass Tempering Furnace-Vidrieria Oriental-LandGlass
*
*
*
*
*
*
