Intelligent Flat Glass Tempering Furnaces

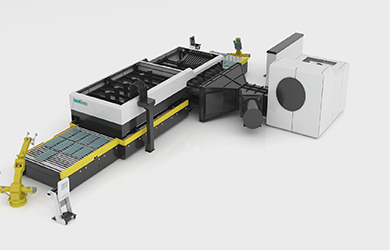

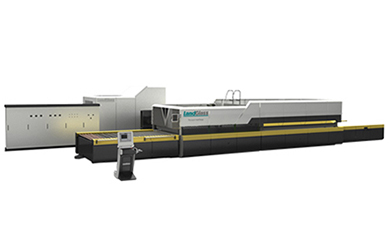

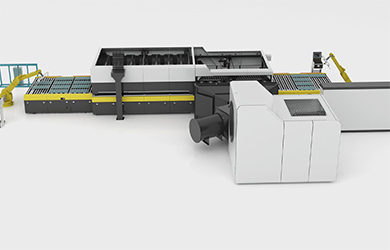

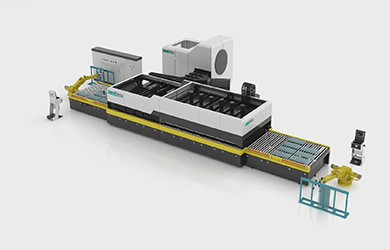

LD-A JetConvection Plus Flat Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • LandGlass is a pioneer in R&D of forced convection heating technology. After years of theoretical research and production test, the LD-A JetConvection Plus Tempering Furnace has become the first choice for small, medium and large glass manufacturing companies. This tempering furnace is recognized internationally, and it is the core product of LandGlass.

    JetConvection PlusTM Convection heating plays a main role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass JetConvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-A JetConvection PlusTM Flat Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. Glass tempered by this tempering furnace has the best quality and is suitable for the architectural and furniture markets. Glass that can be tempered includes: on-line and off-line Low-E glass (E=0.02), extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. Full convection is a completely different approach to the traditional combination of radiation heating and convection pipes. The use of full convection solves a series of heating challenges that are due to the different emissivities at the top and bottom surfaces of coated glass.

    2. Our convection technology has been developed to allow for more heating zones along the width of the furnace. Each of these heating zones can be controlled separately, allowing the generation of heating profiles along the width and the length of the furnace.

    3. The length of the furnace will determine the number of convectors that will be installed, each of which will be independently controlled to allow for different convection settings. Convection blowers are installed at the top of the convection box to balance the air pressure inside the furnace. The air flow distributing mechanism together with the specially designed nozzles, ensure a uniform distribution of the convective airflow.

    4. The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.

    5. Lower bottom heating temperature can be achieved by adjusting the convection parameters, so that the heating defects such as white haze, hot spots, etc., can be eliminated. In the meantime, heating time is reduced and efficiency is optimized.

  • LD-A JetConvection Plus Flat Glass Tempering Furnace

    Types

    Max. Dimension

    Min. Dimension

    Glass thickness

    Heating time(second)

    Productivity (loads/h)

    Installed capacityKVA

    Clear glass

    Low-E

    Clear glass

    Low-E

    A1830J+

    1800X3000

    150X300

    4-19

    32-35

    38-45

    18-20

    15-18

    500

    A2036J+

    2000X3600

    150X350

    4-19

    32-35

    38-45

    18-20

    15-18

    630

    A2436J+

    2440X3600

    150X350

    4-19

    32-35

    38-45

    18-20

    15-18

    800

    A2442J+

    2440X4200

    150X350

    4-19

    32-35

    38-45

    18-20

    15-18

    1000

    A2450J+

    2440X5000

    150X350

    4-19

    32-35

    38-45

    18-20

    15-18

    1000

    A2460J+

    2440X6000

    150X350

    4-19

    32-35

    38-45

    18-20

    15-18

    1250

    A2480J+

    2440X8000

    150X350

    4-19

    32-35

    38-45

    18-20

    15-18

    1600

    A2850J+

    2800X5000

    200X400

    4-19

    32-35

    38-45

    18-20

    15-18

    1250

    A3050J+

    3000X5000

    300X500

    5-19

    32-35

    38-45

    18-20

    15-18

    1250

    A3080J+

    3000X8000

    300X500

    5-19

    32-35

    38-45

    18-20

    15-18

    2000

    Productivity is calculated on 5mm clear glass and 5 mm Low-E glass (E=0.08) with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.
