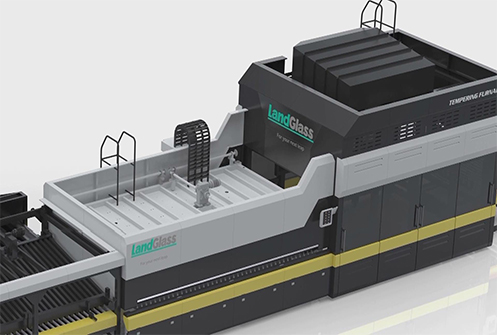

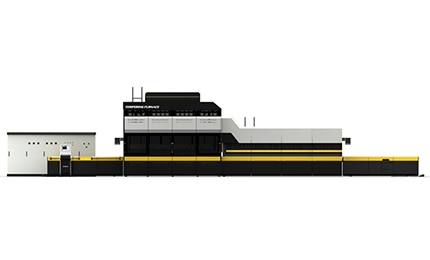

Intelligent Automotive Glass Bending and Tempering Furnace

LD-EV Double Curvature Glass Bending andTempering Furnace (Bus Backlite )

Bus Backlite Glass.etc
convection heating on the top and bottom
on-line and off-line Low-e (E≥0.02) glass, ultra-clear glass, screen-printed glass, pattern glass, tinted glass, clear glass etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • Bending with mold, tempering with versatile chiller; it has good production flexibility and low operation cost.

    Suitable to manufacture after-market bus backlite.

    Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.

  • Bending with mold – guaranteed curvature accuracy;

    Rapid mold mounting – easy to change for production flexibility;

    Versatile chiller – for tempering glass of different shapes to minimize production cost;

    Motorized curvature adjuster – for easy chiller adjustment;

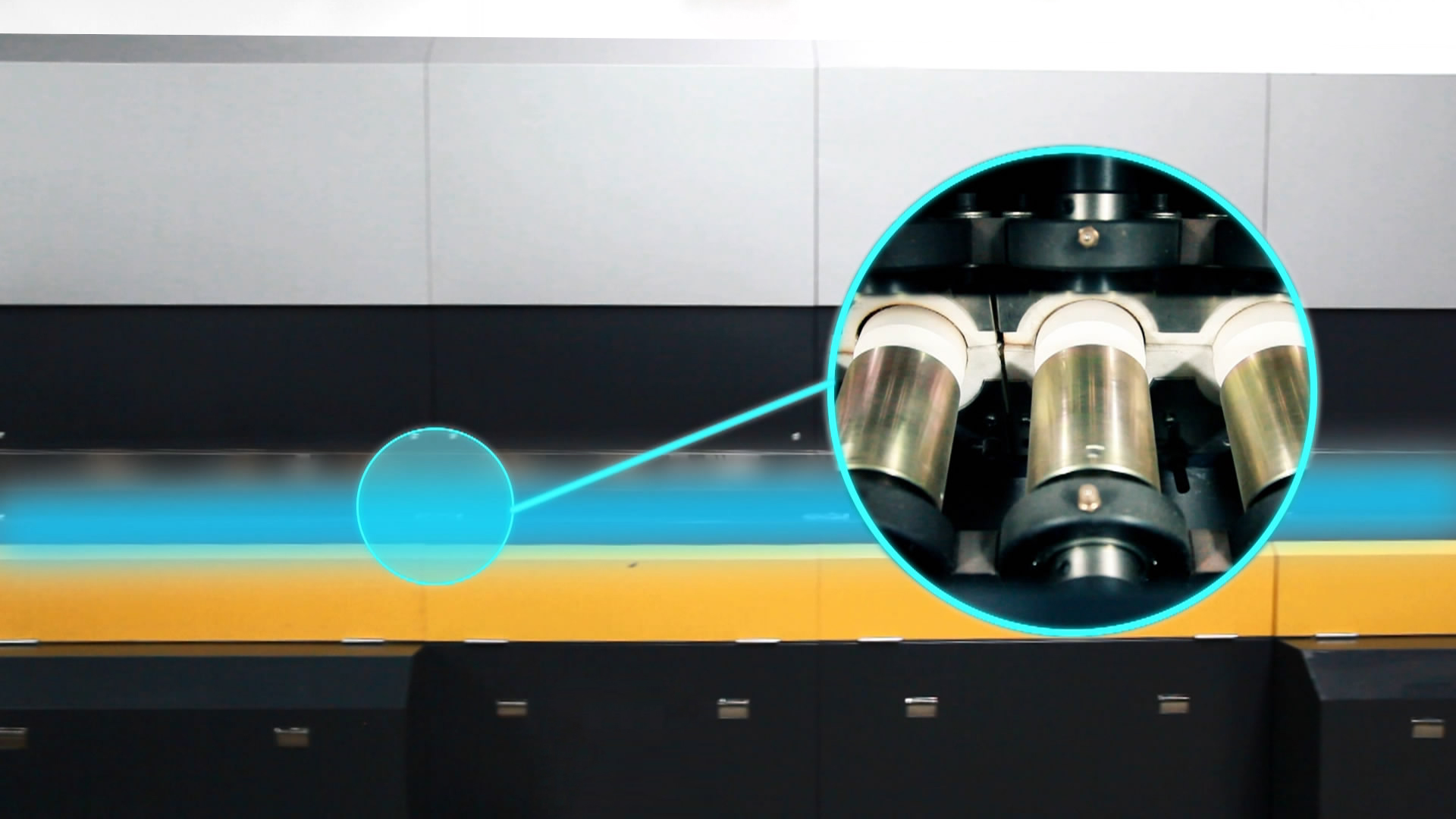

    Lowered roller table – allowing steady running of bending roller.

    Adopting tubular air nozzles – with these nozzles, distance between chiller and glass sheets has less effect on tempering and uniformity of stress in glass is improved .

  • LD-EV Double Curvature Glass Bending andTempering Furnace (Bus Backlite )
    Types Max.Size(mm) Min.Size(mm) Thickness(mm) Max.Height of Curvature Capacity Installed Capacity(KVA)
    E2312/2V ARC2300XARC1200 ARC400XARC500 4-6 150 30-34 900

    Note: Data presented is derived from the production of the thinnest glass. Actual productivity may vary depending on the glass types and process requirements.

  • Company Name BSG Auto Glass Co., Ltd.
    Company Location Dafeng City, Jiangsu Province
    Introduction Specialized in automobile glass manufacturing, BSG Auto Glass Co., Ltd is one of the major industrial projects in Yancheng City. The company is equipped with several state-of-the-art production lines for upscale automobile glass, primarily developing, making, and selling high performance, sound and thermal insulating glasses for luxury vehicles.
    Equipment Type LD-E1610
    Main products Various types of laminated windshield glasses, side window glasses for luxury cars, buses, trucks, and recreational vehicles.
