Intelligent Double Bent Bi-directional Glass Tempering Furnaces

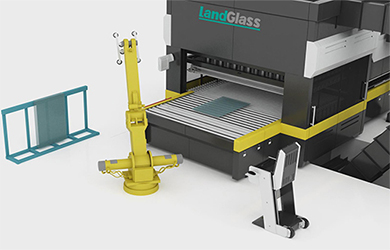

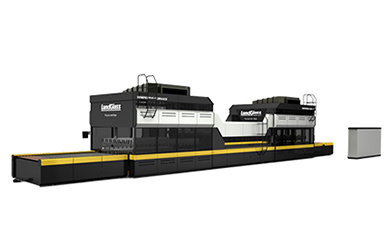

LD-BB JetConvection Plus Double Bent Bi-direction Glass Toughening Machine

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • The B Bending & Tempering equipment range is greatly welcomed due to the ideal curve and good repeatability of the end product. LandGlass equips the heating furnace with a large size B Bending & Tempering section on one side and a small size B Bending & Tempering section on the other side, making this BB Series Bi-Directional Double Bending & Tempering Furnaces. By loading the glass from different directions, the machine can process large size bent tempered glass for the architectural market and small size bent tempered glass for furniture. It is equipped with JetConvection PlusTM heating technology and can temper off-line Low-E and other high demand bent glass.

    JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass Jetconvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

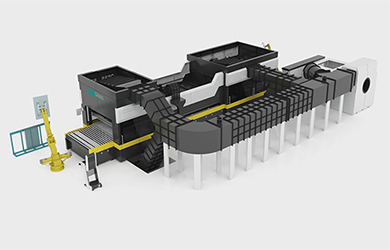

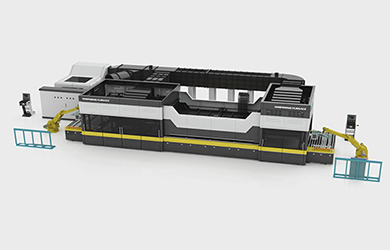

    LD-BB JetConvection PlusTM Double Bent Bi-Directional Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. It is equipped with two bent quenching sections at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper different kinds of bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.

  • 1. It is equipped with a bent quenching section at each side of the heating furnace. By loading glasses from different directions, the tempering line can temper bent glasses of different dimensions and radii.

    2. It can temper the best quality large thick bent glass for the architectural market and small thin bent glass for the automotive or furniture markets.


    3. Equipped with JetConvection PlusTM heating system, it can temper on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.


  • LD-BB JetConvection Plus Double Bent Bi-direction Glass Tempering Furnace
    Types
    Bent glass for building
    Bent glass for furniture

    Glass thickness/

    Min.Radius

    Productivity

    (loads/h)

    Installed capacity(KVA)
    Max.dimension
    Min.dimension
    Max.dimension
    Min.dimension
    Clear glass
    Low-E
    B2430B08/2J+
    2440xARC3000
    300xARC500
    2440xARC800
    300xARC400
    4-19/450
    27-31
    25-29
    800
    B2430B10/2J+
    2440xARC3000
    300xARC500
    2440xARC1000
    300xARC400
    4-19/500
    27-31
    25-29
    1000
    B2436B15/2J+
    2440xARC3600
    300xARC500
    2440xARC1500
    300xARC400
    4-19/750
    27-31
    25-29
    1000
    Productivity of bent glass for furniture is calculated on 5mm clear glass and 0.08 low-e glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.
  • Company
    Elco Glass Industries
    Location
    USA
    Company Profile
    Elco Glass industries in Lakewood, New Jersey, USA,is specialized in the manufacturing of safety glass used for architecture, furniture, doors and windows. The innovative company pays close attention the technological development of glass industries and has a cooperative relationship with LandGlass. The glass tempering furnace from LandGlass has helped Elco satisfy customers’ needs and win their acclaim.
    Furnace Type
    LD-BB Double Bent Bi-direction Glass Tempering Furnace
    Main Products
    Tempered glass for architecture, furniture, autos, doors and windows, etc.
