Intelligent Bi-directional Glass Tempering Furnaces

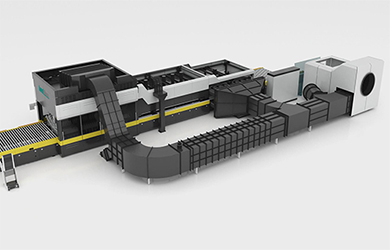

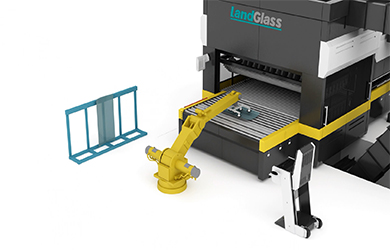

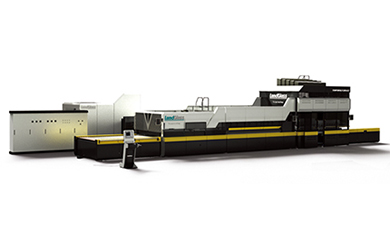

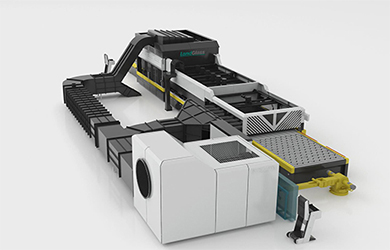

LD-AB AirStream Flat&bent Bi-direction Tempered Glass Machine

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Combination of radiation and assisstant convection heating.
On-line Low-E Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • With the development of the glass industry, the B type bending and tempering furnace, which was originally made for tempering small size glasses, was continuously redesigned to fit bigger glass sizes for the architectural glass market. After that, LandGlass introduced the AB Flat & Bent Bi-Direction Glass Tempering Furnace. This type of machine is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.

    AirStreamTM Radiation Heating plays a supportive role during the process. Compressed air is injected into the heating furnace to aid the heating process of the top surface of the glass, which ensures heating uniformity for on-line Low-E glass, and other glass types.

    LD-AB AirStreamTM Flat & Bent Bi-directional Glass Tempering Furnace adopts AirStreamTM Heating Technology. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass. The glass that can be tempered includes: on-line Low-E glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. It is equipped with a flat and a bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can either temper flat glass or bent glass.

    2. Hard-shaft bending roller technology bends glass lengthwise.

    3. The bending system consists of many bending mechanisms, each of which can camber by itself, and also can be slightly adjusted separately, therefore providing a higher accuracy curvature.

    4. The bending system is controlled by German Servo Control System, which ensures good repeatability and consistency.
  • LD-AB AirStream Flat&bent Bi-direction Glass Tempering Furnace
    Types
    Flat glass
    Max.
    dimension
    Bent glass
    Max.
    dimension
    Flat glass
    Min.
    dimension
     Bent glass
    Min.
    dimension
    Glass
    thickness
    Productivity
    (loads/h)
    Installed
    capacity(KVA)
    A2030B08/2
    2000x3000
    2000xARC800
    150x350
    200xARC350
    4-19/450
    25-29
    800
    A2030B10/2
    2000x3000
    2000xARC1000
    150x350
    200xARC350
    4-19/500
    25-29
    800
    A2436B15/2
    2440x3600
    2440xARC1500
    150x350
    300xARC400
    4-19/750
    25-29
    800
    A2442B18/2
    2440x4200
    2440xARC1800
    150x350
    300xARC400
    4-19/850
    25-29
    800
    A2450B25
    2440x5000
    2440xARC2500
    150x350
    300xARC500
    4-19/1000
    12-15
    1000
    A2460B25
    2440x6000
    2440xARC2500
    150x350
    300xARC500
    4-19/1000
    12-15
    1000
    A2850B25
    2800x5000
    2440xARC2500
    200x400
    500xARC600
    4-19/1000
    12-15
    1250
    A3080B30
    3000x6000
    3000xARC3000
    300x500
    500xARC600
    5-19/1500
    12-15
    2000

    Productivity of bent glass is calculated on 5mm clear glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.

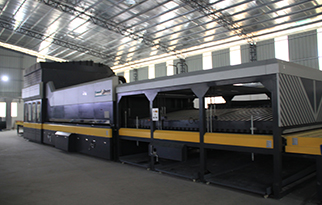

  • Company
    E-I-T(Europe Industrial Traders)
    Location
    Lebanon, Southwest Asia
    Company Profile
    EIT-Group consists of a world-wide Industrial, Financial and Commercial companies specialized in different major sectors located in Germany, Hungary, Egypt, Hong Kong, China and Lebanon.It is one of Middle East's leading glazing contracting and processing firms.
    Furnace Type
    LD-AB AirStream Flat&bent Bi-direction Glass Tempering Furnace
    Main Products
    Glass, aluminium, steel, composite panels.
