Intelligent Bent Glass Tempering Furnaces

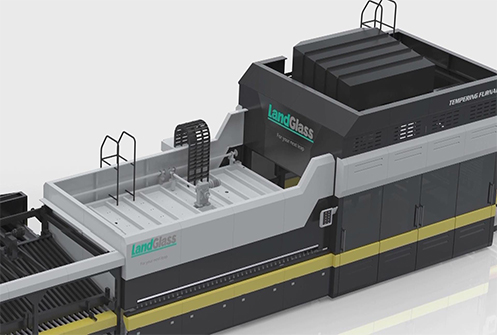

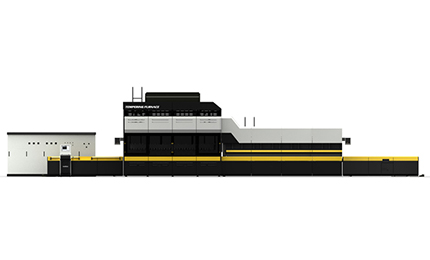

LD-C+ ConeBendTM Glass Tempering Furnace
Architecture
forced convection heating
on-line and off-line Low-e ((E≥0.01) glass, ultra-clear glass, screen-printed glass, pattern glass, tinted glass, clear glass etc.
Chat Online
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
- Adopt world’s leading forced convection heating approach to process high-quality glass curtain used in architecture;
Glass that can be tempered includes: on-line and off-line coated glass, low-iron glass, silk-printed glass, pattern glass, tinted glass, clear glass etc.
Suitable for bending and tempering jumbo-sized glass products for cone shaped glass construction. - The patented LandGlass ConeBendTM technology allows for the bending and tempering or glass with different radii on the top and on the bottom of the glass piece, allowing the smooth bending, tempering and cooling of cone shaped glass.
This technology created new possibilities for architectural designs, especially as this technology can bend and temper glass up to 15 meters in length.
Adopt world’s leading forced convection heating approach to process high-quality glass curtain used in architecture;
Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies. LD-C+ ConeBendTM Glass Tempering Furnace
Type
Max. Dimension
thickness(mm)
Min. radius （8mm）
Min.radius （10-12mm）
Min.radius （15-19mm）
LD-C+24120J+
ARC2400x12000
8-19
1800
2000
3000
LD-C+24120J+
ARC2400x15000
8-19
1800
2000
3000
Company Name Chongqing SYP Engineering Glass Co., Ltd. Company Location City of Chongqing Introduction Founded in November, 2013, Chongqing SYP Engineering Glass Co., Ltd. Is a subsidiary wholly owned by Shanghai Yaohua Pilkington Glass Group Co., Ltd. with RMB 275 million registered capital. The company primarily manufactures and sells inorganic nonmetallic materials and products, LOW-E energy saving special glass, environmental friendly special laminated insulating composite safety glass，self-cleaning special energy efficient glass, LOW-E special glass substrates, and other deep processed glass products. The project is located in the Jianshe cluster of Wanshen Industrial Park (Jianshe Village, Town of Wandong), with a total area of approximately 66 acres, and plans to invest a total of RMB 1.5 Billion on the construction of facilities for off-line coated glass, tempered glass, insulating glass, vacuum insulated glass, and other energy saving building glasses. Main products Inorganic nonmetallic materials and products, LOW-E energy saving special glass, environmental friendly special laminated insulating composite safety glass，self-cleaning special energy efficient glass, LOW-E special glass substrates, and other deep processed glass products
