Intelligent Flat Glass Tempering Furnaces

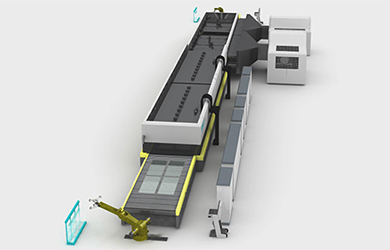

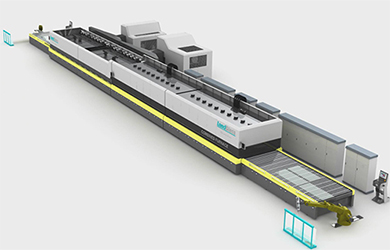

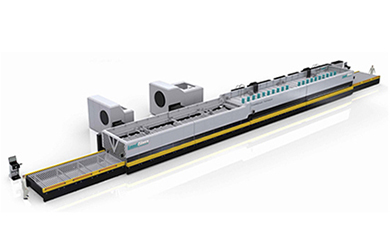

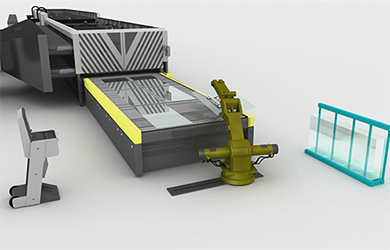

LD-A Intelligent Flat Thin Glass Tempering Machine
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
To realize thermal tempering without compressed air, producing high quality ultra-thin flat tempered glass by adopting energy efficient high pressure blowers.
Stable product quality, reliable operation and low production costs.
Ideal for the production of ultra-thin, flat tempered glass used in household appliances and solar power industries.
Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.
Typical Models A1225L24 A1225L30 A1225L36 Max. Dimension 1200x2500 1200x2500 1200x2500 Min. Dimension 200X400 200X400 200X400 Glass thickness 2.5-6mm（Tempered）
2.0mm（Strengthened）
2.5-6mm（Tempered）
2.0mm（Strengthened）
2.5-6mm（Tempered）
2.0mm（Strengthened）
Capacity 240-260 320-340 400-420 Installed capacity 2400 2800 3200 Note: Data presented is derived from the production of the 2.5 mm tempered glass calculated on 65% loadage. Actual productivity may vary depending on the glass types and process requirements.
Company Name Chongqing SYP Engineering Glass Co., Ltd. Company Location City of Chongqing Introduction Founded in November, 2013, Chongqing SYP Engineering Glass Co., Ltd. Is a subsidiary wholly owned by Shanghai Yaohua Pilkington Glass Group Co., Ltd. with RMB 275 million registered capital. The company primarily manufactures and sells inorganic nonmetallic materials and products, LOW-E energy saving special glass, environmental friendly special laminated insulating composite safety glass，self-cleaning special energy efficient glass, LOW-E special glass substrates, and other deep processed glass products. The project is located in the Jianshe cluster of Wanshen Industrial Park (Jianshe Village, Town of Wandong), with a total area of approximately 66 acres, and plans to invest a total of RMB 1.5 Billion on the construction of facilities for off-line coated glass, tempered glass, insulating glass, vacuum insulated glass, and other energy saving building glasses. Main products Inorganic nonmetallic materials and products, LOW-E energy saving special glass, environmental friendly special laminated insulating composite safety glass，self-cleaning special energy efficient glass, LOW-E special glass substrates, and other deep processed glass products
