Cyclone Glass Tempering Furnaces

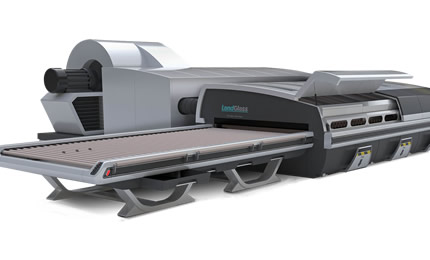

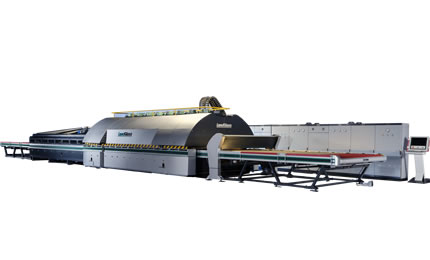

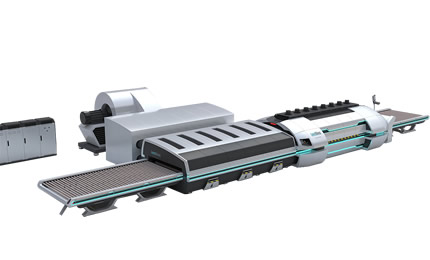

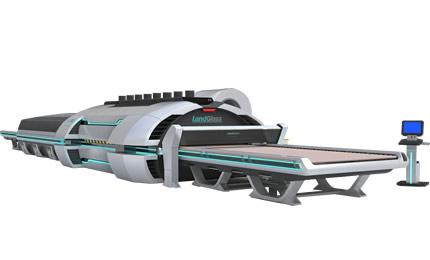

All-new Upgraded Cyclone Flat Glass Tempering Furnace
- Product Introduction
- Technical Features
- Technical Parameters
- Customer Case
The legendary and benchmark product in the intelligent glass tempering equipment field with thirteen innovative technologies and nearly a hundred of innovations and creations – the upgraded Cyclone series glass tempering furnace is capable of providing systematic solutions for flat and bent tempered glass for architecture and furniture, automobile, home appliances, and solar power industries, fulfilling the ultimate demand for top quality tempered glass!
Cyclone Ⅱ series
National standards Edge waviness
e.g. 0.06/300 mm
(5 mm Low-E glass under normal production condition)
For flat glass, waviness≤0.2%
Stress marks No stress mark can be seen from the naked eye under natural light
with 8 pieces of 6 mm clear glass overlaid.N/A
Flatness Overall bow: 1/1000 mm
For flat glass, overall bow≤0.3%
Image distortion
Image distortion can hardly be observed from a distance of 30 m
N/A
Stress level Difference ≤±6 Mpa/m²
N/A
CycloneⅡ Flat Glass Tempering Furnace
Types
Max. Dimension
Min. Dimension
Glass thickness
Heating time ( s/mm )
Productivity (loads/h)
Installed capacity （KVA）
Clear glass
Low-E
Clear glass
Low-E
A2436
2440X3600
150X350
4-19
28-32
38-42
22-24
15-20
800
A2442
2440X4200
150X350
4-19
28-32
38-42
22-24
15-20
1000
A2450
2440X5000
150X350
4-19
28-32
38-42
22-24
15-20
1000
A2460
2440X6000
150X350
4-19
28-32
38-42
22-24
15-20
1250
A2850
2800X5000
200X400
4-19
28-32
38-42
22-24
15-20
1250
A3050
3000X5000
300X500
5-19
28-32
38-42
22-24
15-20
1250
A3080
3000X8000
300X500
5-19
28-32
38-42
22-24
15-20
2000

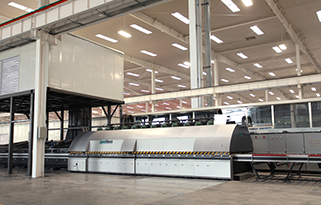

Note: Productivity is calculated on 5 mm clear glass and 5 mm off-line triple silver Low-E (E≤0.02) glass with 65% loadage. Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited space.Company Wuhua Tianbao Glass Co., Ltd (Hebei) Location Langfang, Hebei Company Profile Wuhua Tianbao Glass Co., Ltd (Hebei), located in Gu’an industrial park in Hebei Province, is affiliated with
Beijing Wuhua Tianbao Glass Co., Ltd (WHTB Glass) which is one of the leading provider of processed
glass products, working on the transformation and upgrading of glass processing industry. Wuhua Tianbao
Glass Co., Ltd (Hebei), has introduced the cutting-edge glass processing equipment and glass process
software. At present, Wuhua Tianbao Glass Co., Ltd (Hebei) owns two glass tempering lines which can
temper triple-silver Low-E glass with an annual processing capacity of 1,500,000 m2. The main products
include post-temperable Low-E, insulated glass units, tempered glass covering lot of fields, like
architecture, military and industrial glass.
Furnace Type CycloneTM Convection Glass Tempering Furnace Main Products Low-E glass, insulated glass, safety glass , etc.
