Intelligent Automotive Glass Bending and Tempering Furnace

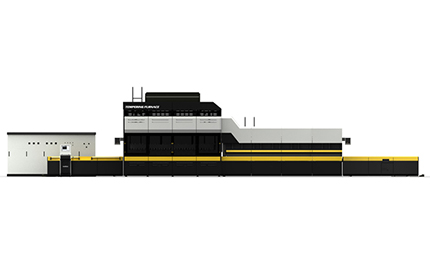

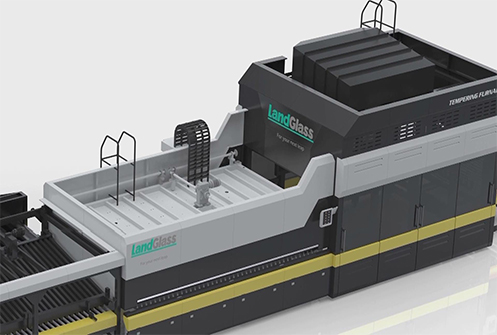

LD-BV Bent Glass Tempering Furnace (Sidelite)

Automotive Sidelite, Fixed vent
convection heating on the top and bottom
on-line and off-line Low-e (E≥0.01) glass, ultra-clear glass, screen-printed glass, pattern glass, tinted glass, clear glass etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • Adopting continuous pass-through tempering process, ideal for mass production and processing of automotive sidelite, fixed vent;

    Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.

  • Pass-through tempering process – high quality and high output;

    Asymmetric chiller design – precise shaping and smoother curvature;

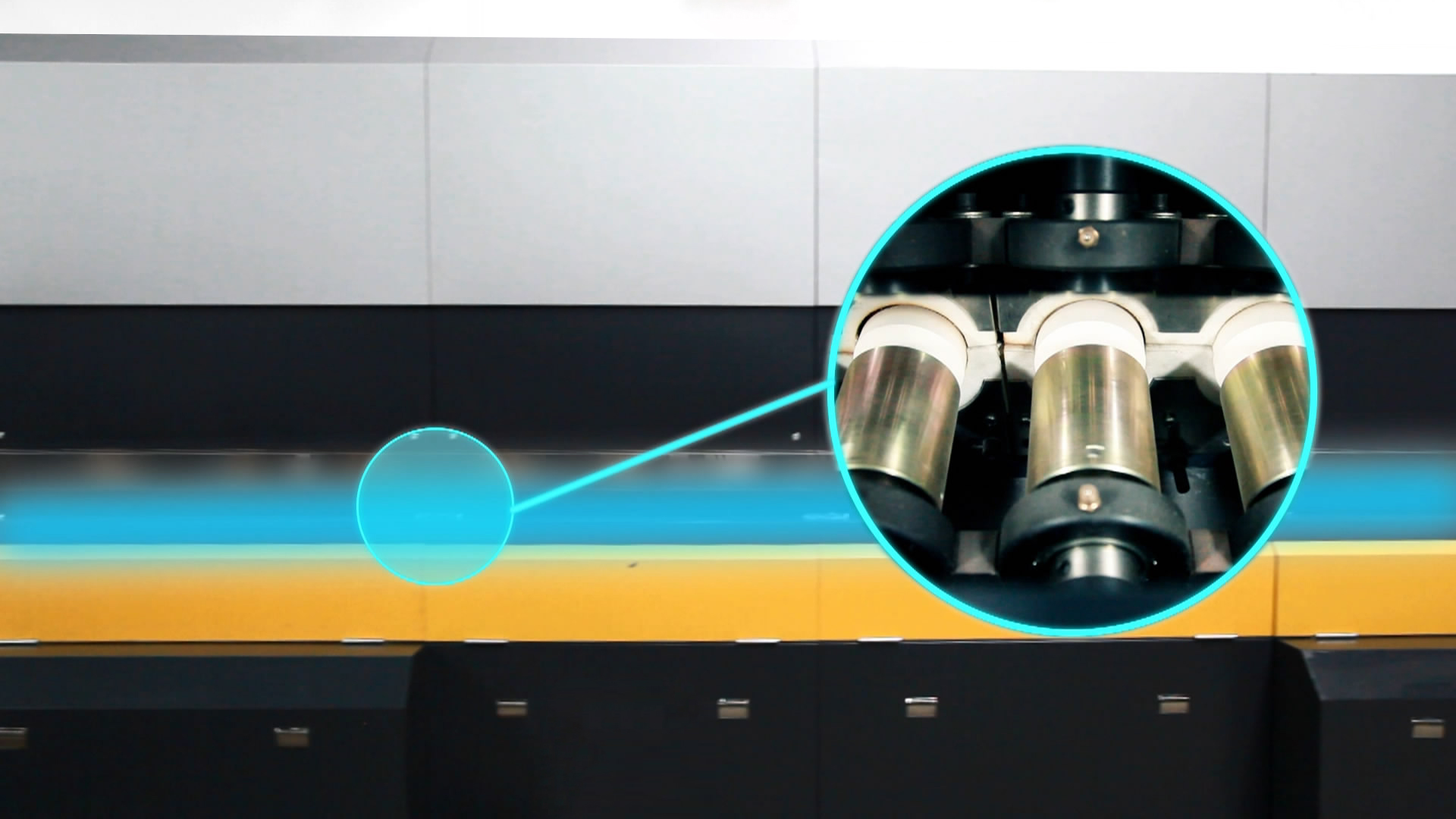

    Easy roller installation – for more convenient rapid replacement;

    Computer-aided curvature adjuster – easy operation and accurate curvature;
    Pressure display and alarm – quenching pressure monitoring to ensure tempering quality;
    Scalable transition device – offering great convenience in furnace operation
    Open type chiller – easy access for service work;

  • LD-BV Bent Glass Tempering Furnace (Sidelite)
    Type Max.Size(mm) Min.Size(mm) Thickness(mm) Max.Height of Curvature



    Installed Capacity(KVA)
    B1208/4V 1200XARC800 100XARC300 3.2-5 1150 75-80 900
    B1508/4V 1500XARC800
    3.2-5 1150 75-80 1100
    B1208L24V 1200XARC800 100XARC300 3.2-5 1150 450-460 2200
    B1508L14V 1500XARC800 100XARC300 3.2-5 1150 270-280 1200

    Note: Data presented is derived from the production of the thinnest glass. Actual productivity may vary depending on the glass types and process requirements. Optional temperature surveillance device ensures product yield by monitoring glass exit temperature and giving warning when exceptional temperature is detected.

  • Company Name Jingmen Xinsheng Industry Co., Ltd., Hubei Province
    Company Location City of Jingmen, Hubei Province
    Introduction Hubei Jingmen Xinsheng Industry Co., Ltd is a modernized enterprise integrating manufacturing, sales, and service in glass deep processing industry. The main products of the company include flat and bent building glass, automobile glass and other deep processing products.  Adhering to the “Win customers with reputation; survive the competition with quality; profit through effective management” philosophy, the company is committed to providing quality products to its customers.
    Equipment Type LD-B1008L
    Main products Tempered glass for excavators, automobiles, buses, buildings, windows and doors, household appliances, furniture, windshields, and safety glasses.
