Intelligent Automotive Glass Bending and Tempering Furnace

LD-DV Variable Curvature Glass Bending and Tempering Furnace* (Bus Sidelite 2)

Bus Sidelite Glass
convection heating on the top and bottom
on-line and off-line Low-e (E≥0.01) glass, ultra-clear glass, screen-printed glass, pattern glass, tinted glass, clear glass etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case

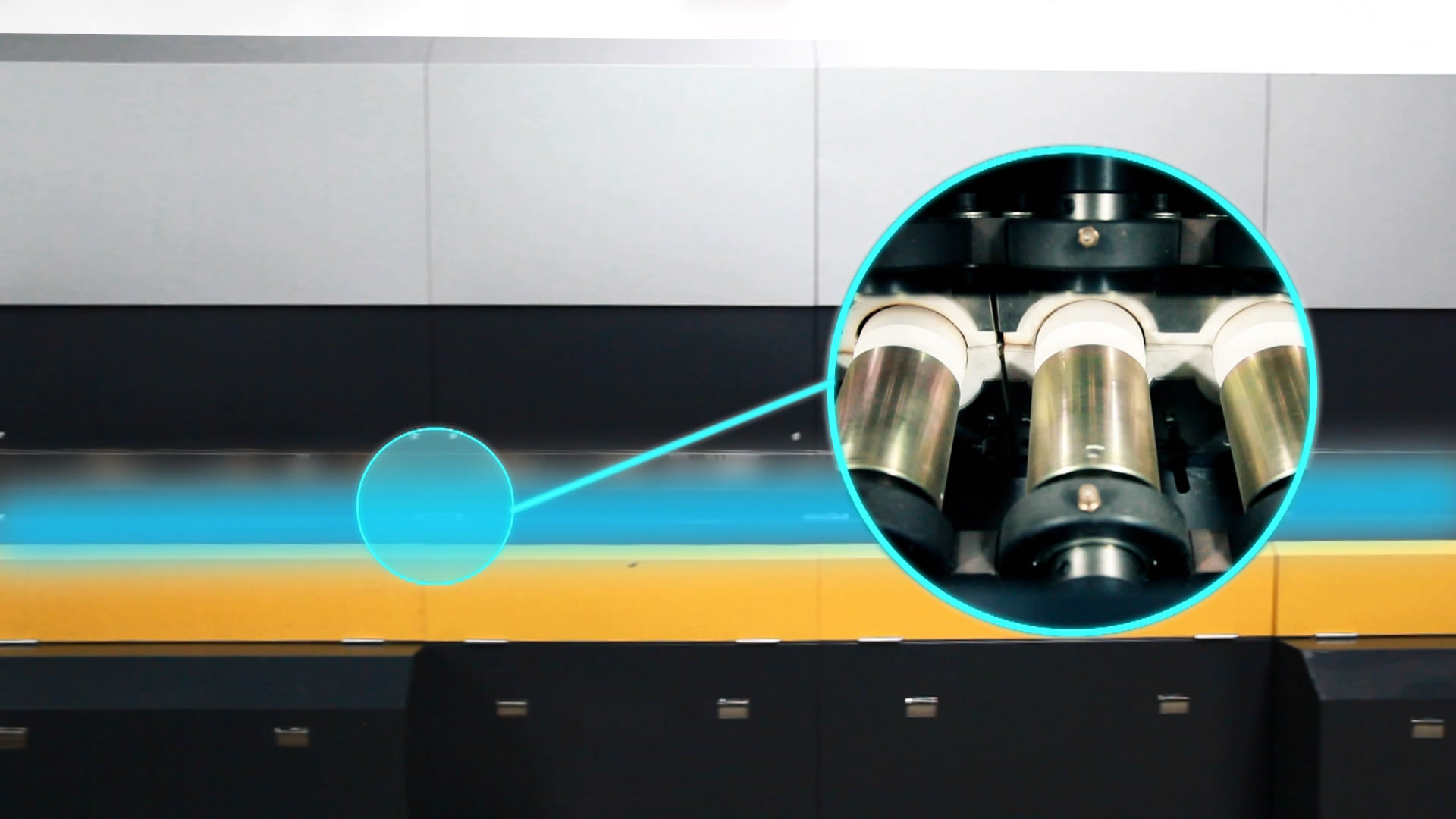

  • Bending section with hard shafts and quenching with small oscillation make a simple structure and easy operation;  “-” shape layout ensures less footprint, ideal for  processing bus sidelite with small curvature height.

    Optional smart control solutions are available for comprehensive, flexible, and powerful equipment management. High quality and lean production of tempered glass can be achieved based on state-of-the-art technologies.

  • External curvature adjuster – for easy curvature adjustment;

    Visualized scale design-easy to see the result

    Conventional layout – low cost, less footprint;

    Duo servo for independent bending – excellent product repeatability

  • LD-DV Variable Curvature Glass Bending and Tempering Furnace* (Bus Sidelite 2)
    Type Max.Size(mm) Min.Size(mm) Thickness(mm) Min.Radius Max.Height of Curvature Capacity Installed Capacity(KVA)
    D2418/2V 2400XARC1800 300XARC400 4-6 350 50 32-36 1000

    Note: Data presented is derived from the production of the thinnest glass. Actual productivity may vary depending on the glass types and process requirements. The model is suitable for the production of small curvature height, variable curvature side window glass for bus.

  • Company Name Changzhou Nanxin Glass Co., Ltd.
    Company Location City of Changzhou, Jiangsu Province
    Introduction Changzhou Nanxin Glass Co., Ltd is a mid-size manufacturing enterprise with a floor space approximately 12,000 square meters and currently employs more than 150 workers. The company has a number of advanced high quality production lines with ancillary equipment. Their products have wide range of applications in construction, decoration, furniture, sanitary fittings. They supply various types of flat and bent glass, laminated and insulating glass, as well as special glass and art glass. The company has built a good reputation through its advanced equipment, technical strength, superior quality, and strong service support, and is a well-established glass deep processing enterprise in Yangtze River Delta region.
    Equipment type LD-D1209-2 Variable Curvature Tempering Furnace
    Main products Tempered glass products, glass for heavy machinery, freezers and refrigerators, glass accessories for trains, and glass shower enclosures
