Intelligent Double Bent Bi-directional Glass Tempering Furnaces

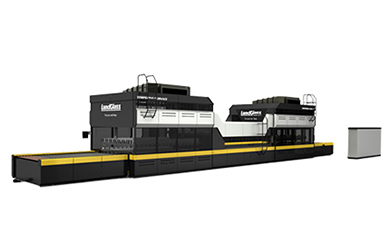

LD-BE JetConvection Plus Double Bent Bi-direction Glass Tempering Furnace

Architecture&Furniture, Automobile Industries and Household Appliances, etc.
Forced convection heating on the top and bottom.
On-line and Off-line Low-E (E≥0.01) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Chat Online
  1. Product Introduction
  2. Technical Features
  3. Technical Parameters
  4. Customer Case
  • LandGlass produces the BE Series Double Bent Bi-direction Glass Tempering Furnace. It has both a B and an E bending and tempering section at each side of the heating furnace. By loading the glass in different directions, the machine can process single curvature bent glass for automotive sidelites with the B bending and tempering section or double-curvature glass like automotive backlites with the E bending and tempering section. It is a perfect choice for an automotive glass producer due to the reduced investment taking into account that one heating furnace serves both purposes.It is equipped with JetConvectionTM heating technology and can temper off-line Low-E and other high demand bent glass.

    JetConvection PlusTM Convection heating plays an important role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated and recirculated by the convection blowers into the JetConvection chamber. LandGlass Jetconvection technology enhances the quality of the final product and increases productivity by ensuring an even heating, while minimizing production costs.

    LD-BE JetConvection PlusTM Double Bent Bi-Directional Glass Tempering Furnace adopts JetConvection PlusTM Heating Technology. It is equipped with two bent quenching sections at each side of the heating furnace. By loading glasses in different directions, the tempering line can temper single curvature or double curvature bent glass. Glass that can be tempered includes: on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • 1. It is equipped with a B and an E bent quenching section at each side of the heating furnace. By loading glasses in different directions, the tempering line can process single curvature bent glass for automotive sidelites and double curvature bent glass for automotive backlites.

    2. It can temper small volumes of high quality single curvature and double curvature bent tempered glasses for vehicles.

    3. Equipped with JetConvection PlusTM heating system, it can temper on-line and off-line Low-E (E≥0.01) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
  • LD-BE JetConvection Plus Double Bent Bi-direction Glass Tempering Furnace
    Types
    Max.Size
    Min.Size
    Max.Size
    Min.Size
    Thickness

    Capacity

    (loads/h)

    Installed

    Capacity

    (KVA)

    B1608E10/2J+
    1600xARC800
    200xARC350
    ARC1600xARC1000
    ARC500xARC400
    3.5-6/120
    32-36
    800
    B2310E12/2J+
    2300xARC1000
    300xARC400
    ARC2300xARC1200
    ARC600xARC500
    4-6/150
    32-36
    1000
    Productivity of double curvature glass is caculated 4mm clear glass . Actual productivity is subject to glass types, sizes and loadage. Not all types are listed here due to limited of space.

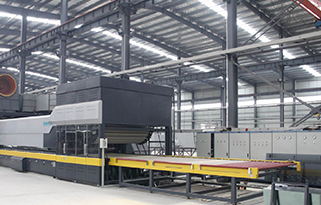

  • Company
    Shangbo Glass Limited Company
    Location
    Henan, China
    Company Profile
    Shangbo Glass Limited Company is specialized in the high-end glass processing, boasting international leading production equipments and ranking among first-class glass processing industries with high automation level and high quality products. Among its leading products are safety glass, insulating glass and Low-E glass that is environmentally friendly and energy-saving.
    Furnace Type
    LD-BE Double Bent Bi-direction Glass Tempering Furnace
    Main Products
    Tempered glass for exterior walls and interior decorations of high-end building and for doors and windows of residential houses.
